로드셀
"산업용부터 연구용까지 완벽한 측정파트너"
제품소개
로드셀
1

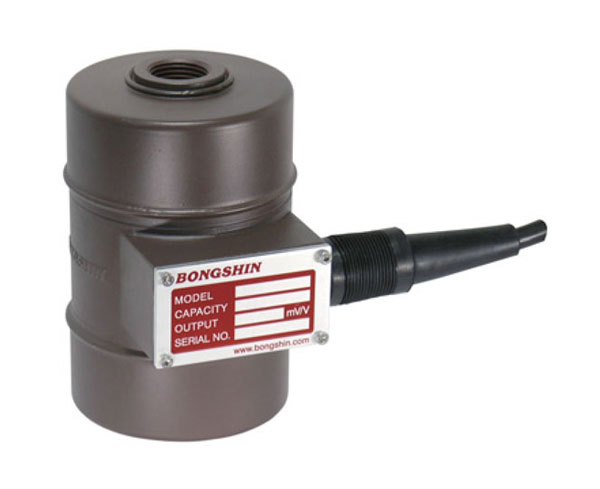

TR
Tension Load Cell (50kg ~ 10 t)
Alloy Tool Steel,
3mV/V, IP67
2

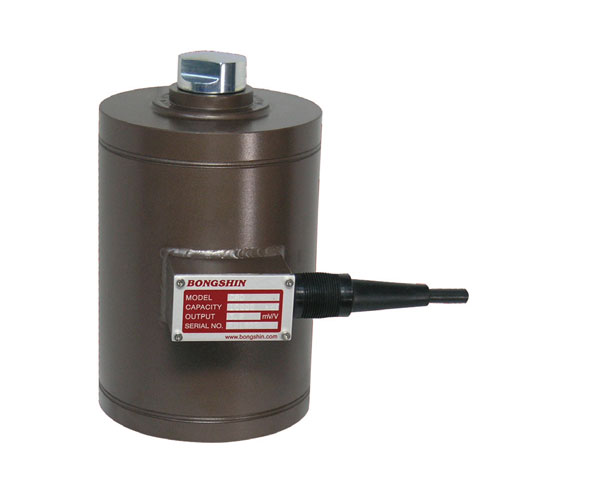

CR
Compression Load Cell (200kg ~ 20 t)
Alloy Tool Steel,
3mV/V, IP67
3

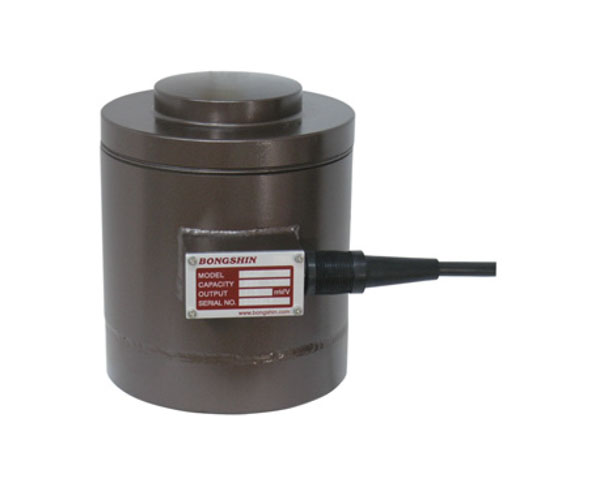

CCDM / CCCM
Compression Load Cell (10t ~ 300 t)
Alloy Tool Steel,
1.5 mV/V, IP67
4

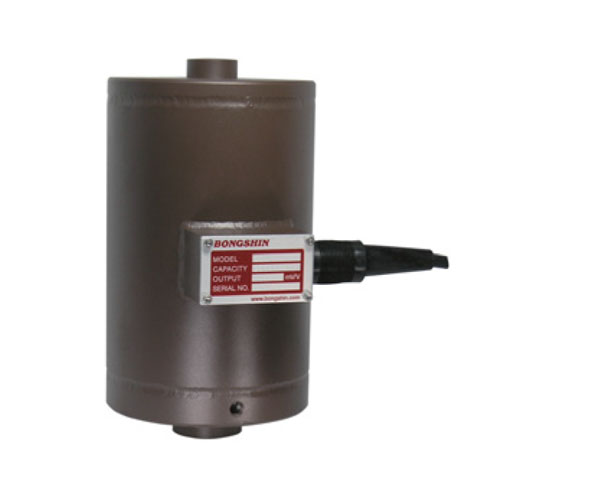

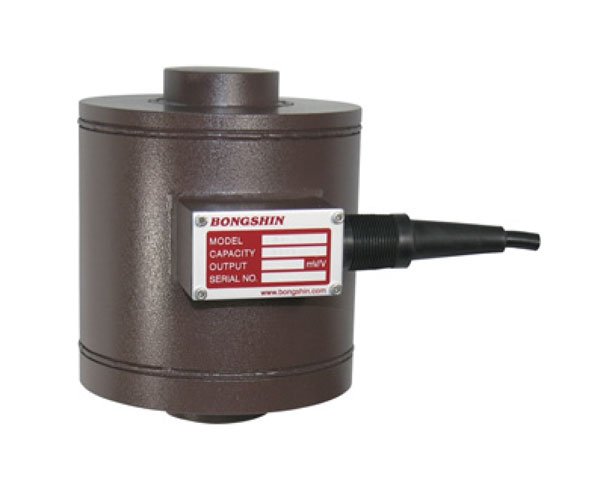

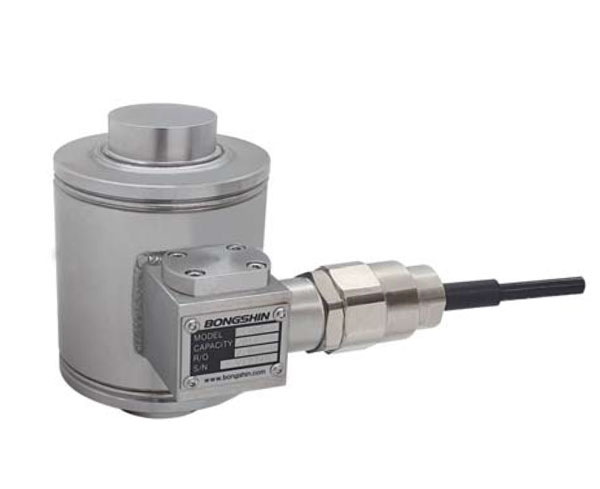

CCDH / CCDHS
Compression Load Cell (10t ~ 500 t)
Alloy Tool Steel or Stainless Steel,
1.5mV/V, IP67 / IP68
5
BCCU
Compression Load Cell (10t ~ 50 t)
Alloy Tool Steel,
1.5 mV/V, IP67
6
CCHXE
내압,분진방폭형
Compression Load Cell (10t ~ 50t)
Stainless steel
2mV/V, IP67
7

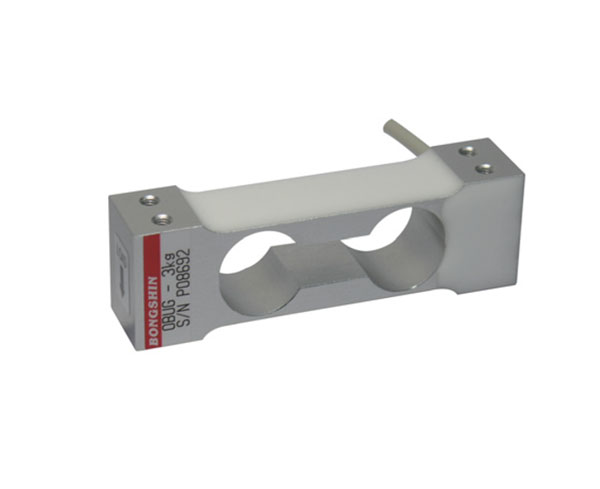

OBUG
Single point Miniature Load Cell (1kg ~ 3kg)
Aluminum
1mV/V, IP65
8

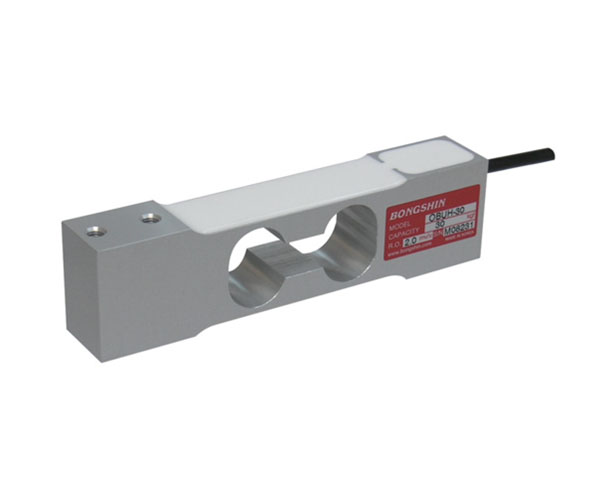

OBUH / OBUHS
Single point Load Cell (5kg ~ 100kg)
Aluminum,Stainless steel
2mV/V, IP65
9

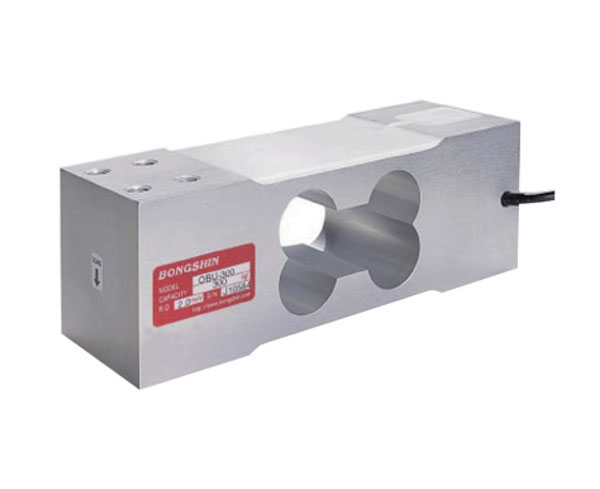

OBU
Single point Load Cell (1kg ~ 250kg)
Aluminum,
2mV/V, IP65
10

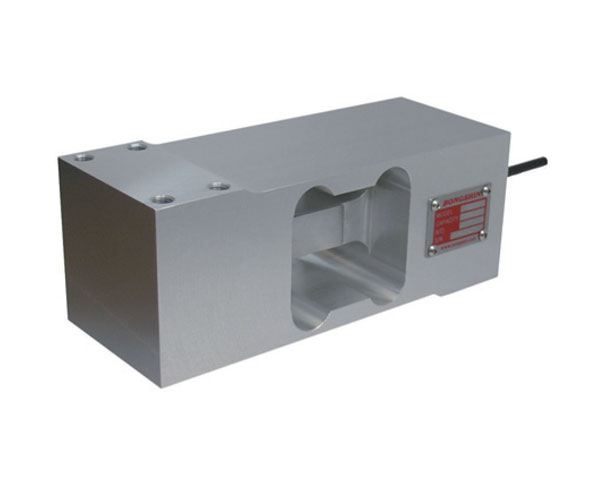

OBUX
Single Point Load Cell (50kg ~ 500kg)
Aluminum,
2mV/V, IP67
11

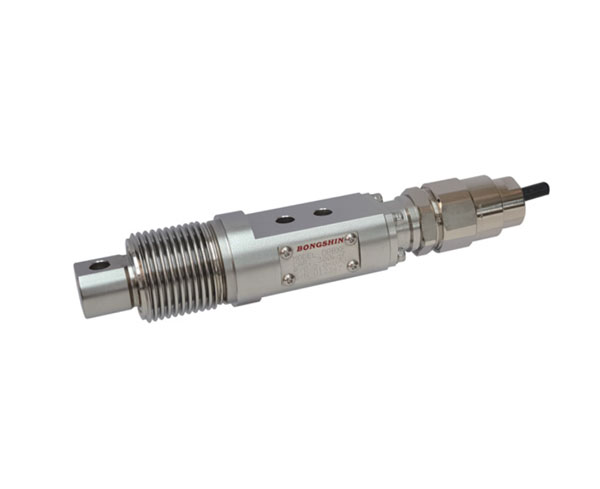

OBBXE
내압,분진방폭형
Bending Beam Load Cell (10kg ~ 300kg)
Stainless Steel, 2mV/V, IP67
12

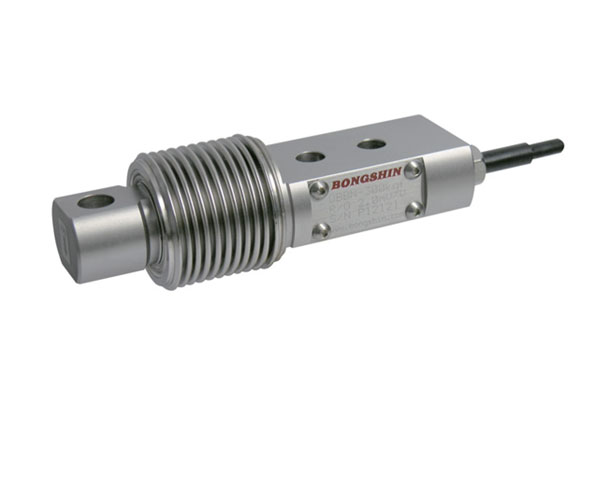

OBBN
-
Bending Beam Load Cell (20kg ~ 300kg)
Stainless steel 2mV/V, IP68
13

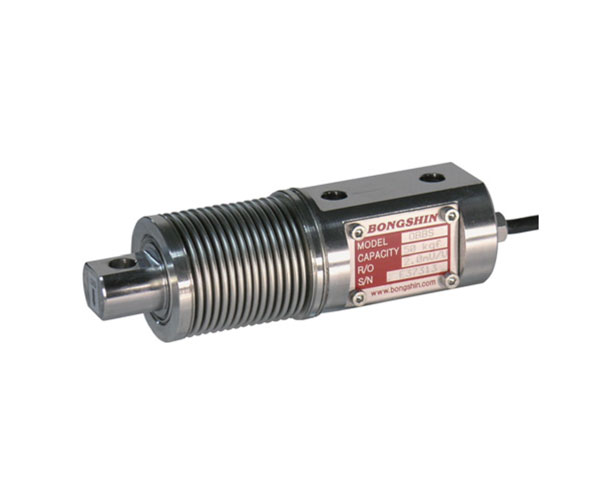

OBBS
Bending Beam Load Cell (20kg ~ 500kg)
Stainless Steel,
2mV/V, IP68
14

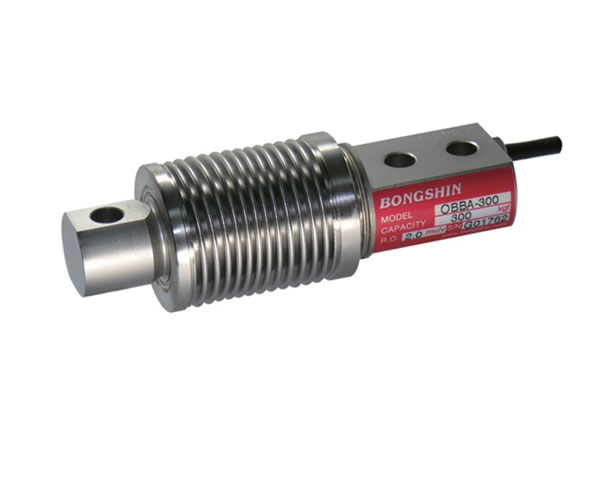

OBBA
Bending Beam Load Cell (10kg ~ 300kg)
Stainless Steel,
2mV/V, IP68
15
OSBH
Shear Beam Load Cell (200kg ~ 10t)
Nickel Plated Alloy Steel,
3mV/V, IP67
16

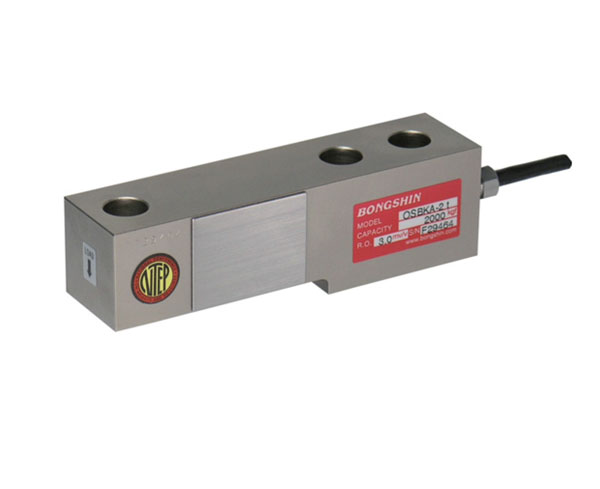

OSBK
Shear Beam Load Cell (100kg ~ 10t)
Nickel Plated Alloy Steel,
3mV/V, IP67
17

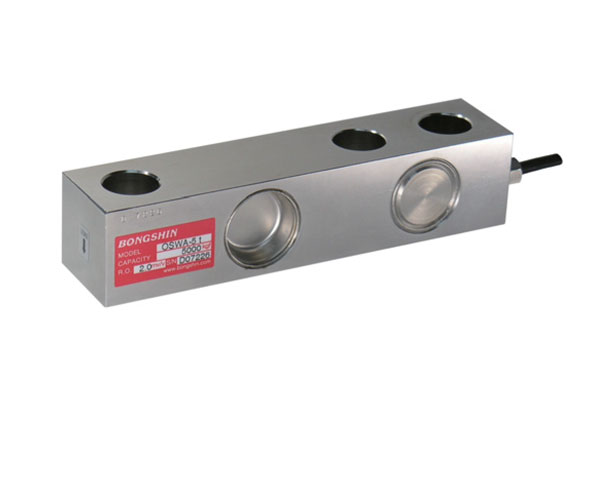

OSW
Shear Beam Load Cell (500kg ~ 5t)
Stainless Steel & Welded cover,
2mV/V, IP68
18

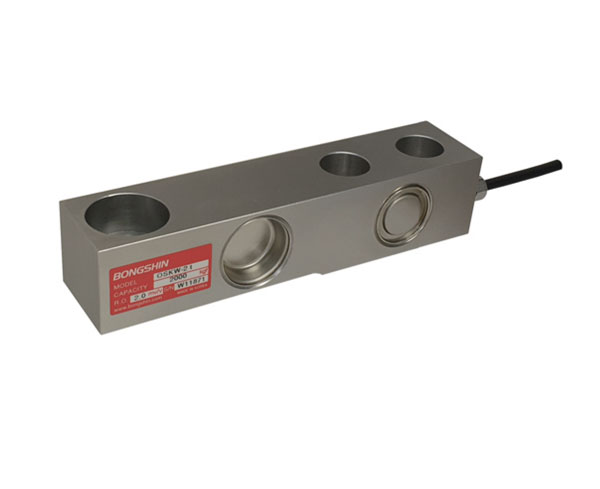

OSKW
Shear Beam Load Cell (500kg ~ 5t)
Stainless Steel & Welded cover,
2mV/V, IP68
19

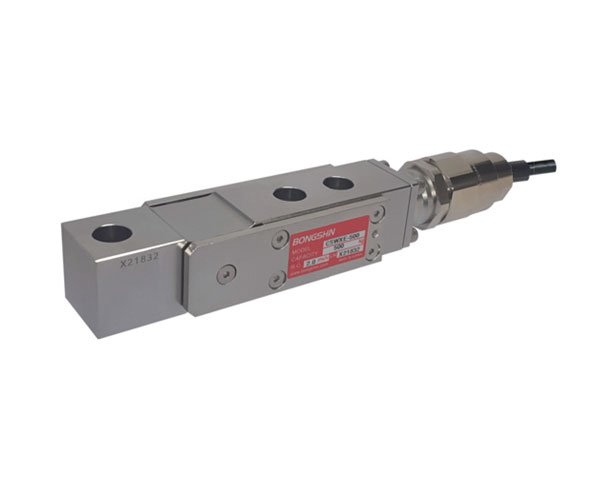

OSWXE
내압방폭형
Shear Beam Load Cell
(500kg ~ 5t)
Stainless Steel , 2mV/V, IP67

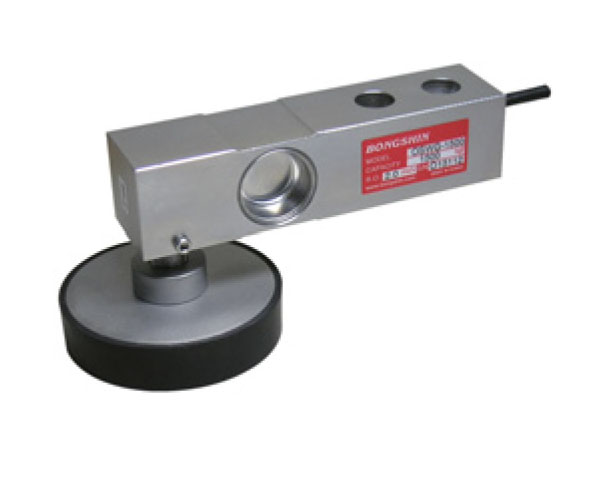

20

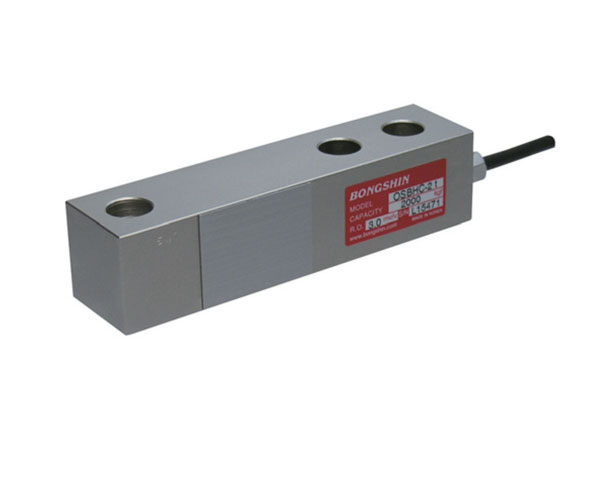

OSBHG / OSWG
-
Shear Beam Load Cell (200kg ~ 2t)
Alloy Tool steel or Stainless Steel
3mV/V or 2mV/V, IP67 / IP68
21

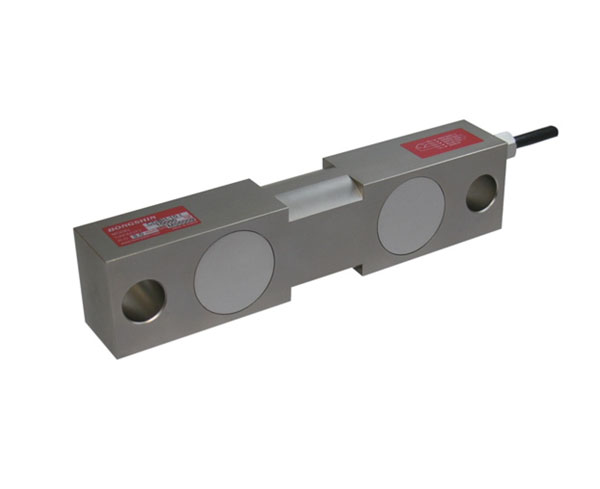

CDBH
Double Ended Shear Beam Load Cell (5t ~ 15t)
Nickel Plated Alloy Steel,
3mV/V, IP67
22

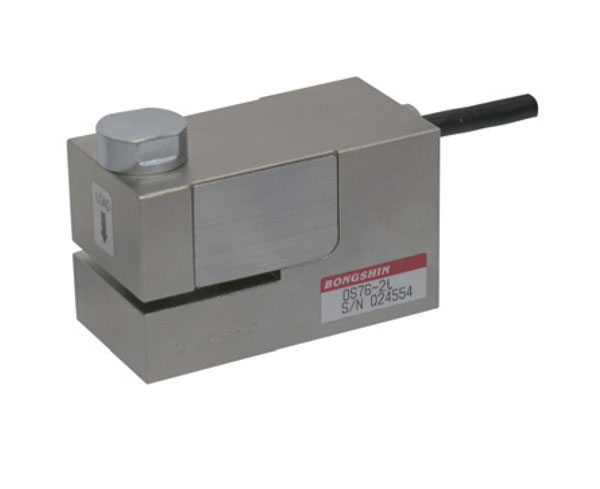

OS76
Compression Load Cell (500kg ~ 2000kg)
Nickel Plated Alloy Steel
2.0mV/V, IP67
23

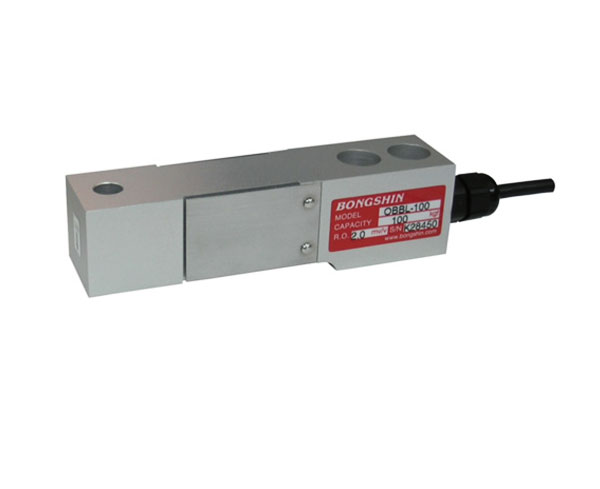

OBBL
Bending Beam Load Cell (20kg ~ 200kg)
Aluminum,
2mV/V, IP65
24

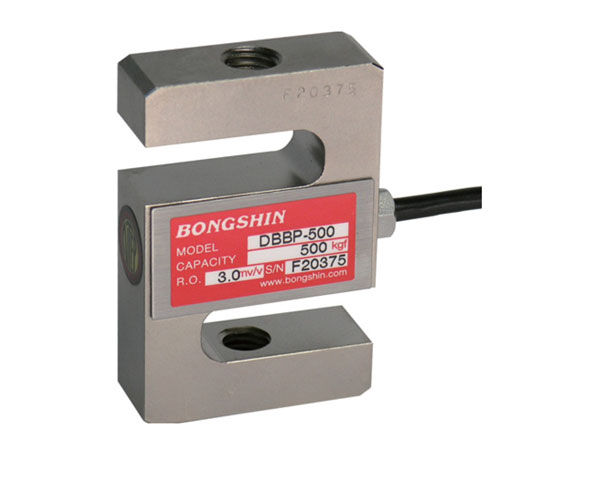

DBBP
S-Beam Load Cell (20kg ~ 5t)
Nickel Plated Alloy Steel,
3mV/V, IP67
25

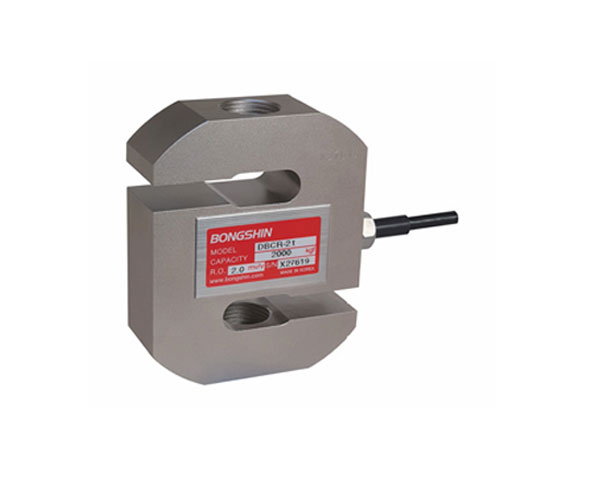

DBCR
S-Beam Load Cell (100kg ~ 5t)
Nickel Plated Alloy Steel
2mV/V, IP67
26

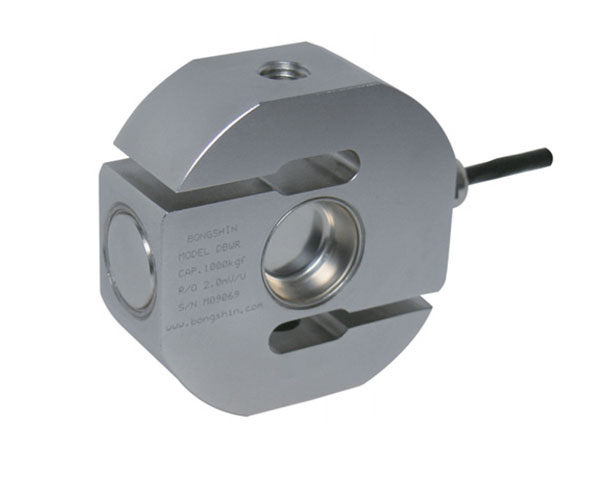

DBWR
S-Beam Load Cell (500kg ~ 5t)
Stainless Steel & Welded cover,
2mV/V, IP68
27

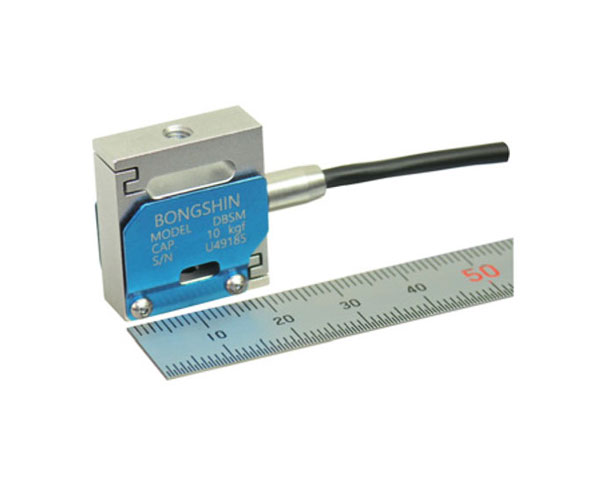

DBSM
Compression & Tension
Built-in overload protection (3kg ~ 30kg)
2mV/V, IP64
28

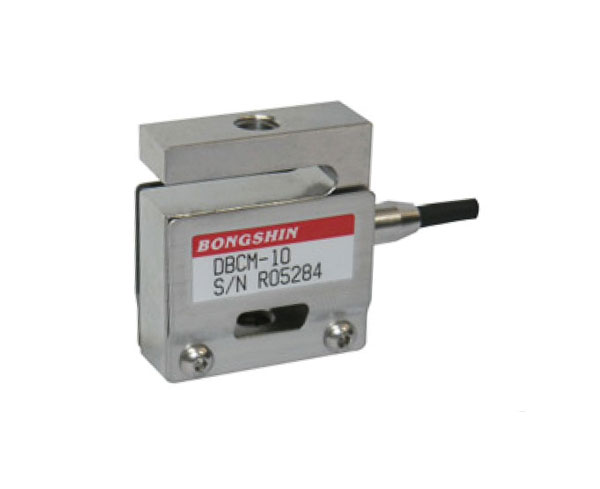

DBCM
Compression & Tension
Miniature Load Cell (2kg ~ 300kg)
2mV/V, IP64
29

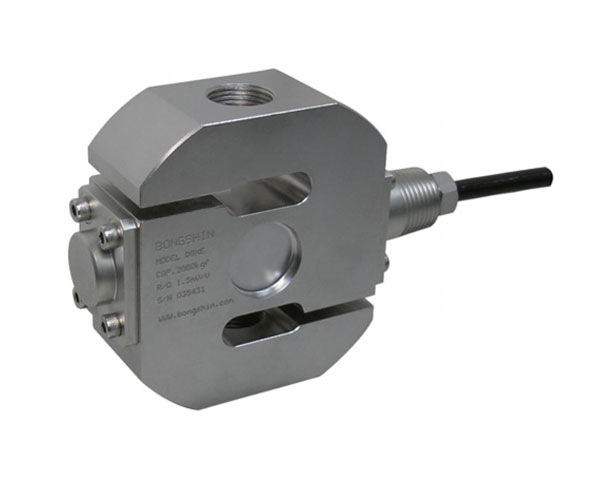

DBXE
내압방폭형
Compression & Tension Load Cell
( 1t ~ 3t )
1.5mV/V, IP68
30
CLWXE
내압방폭형
Compression Load Cell (2t ~ 15t)
Stainless Steel & Welded cover,
2mV/V, IP68
31

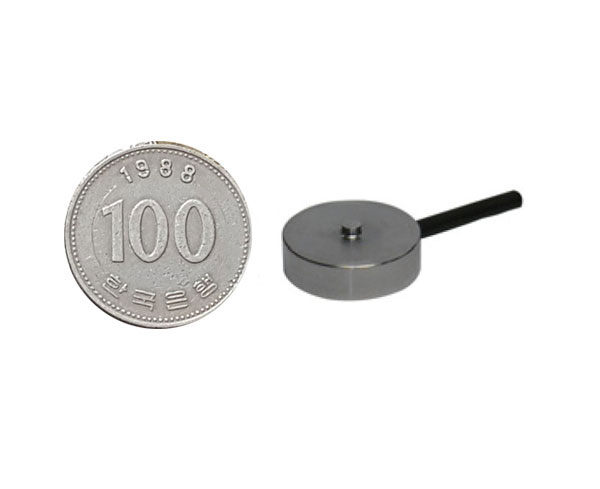

CBMS
초소형
Compression
Sub-Miniature Load Cell (3kg ~ 30kg)
0.7~1.5mV/V, IP60
32

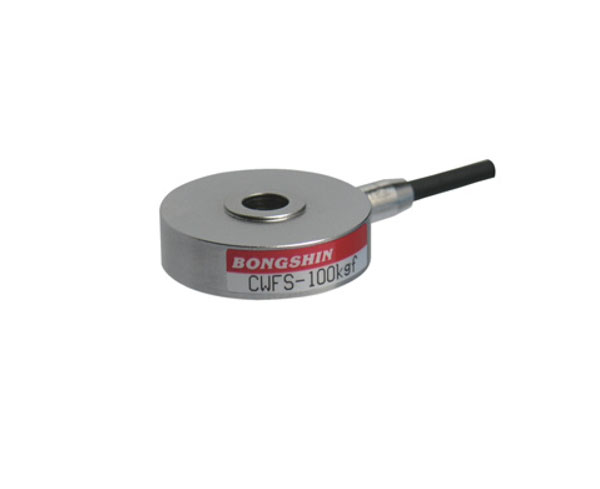

CWFS
-
Center hole type
Miniature Load Cell (20kg ~ 200kg)
Stainless Steel, 2mV/V, IP64
33

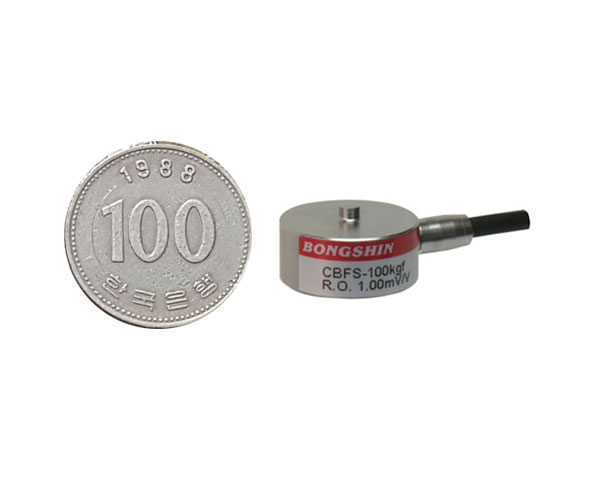

CBFS
Compression
Miniature Load Cell (3kg ~ 1000kg)
1mV/V, IP65
34

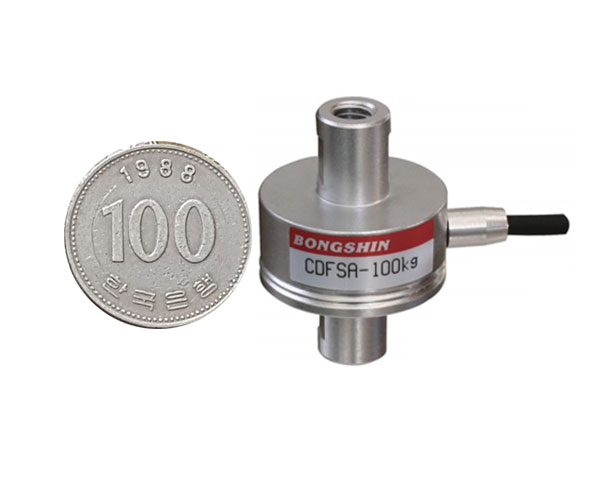

CDFS
Compression & Tension
Miniature Load Cell (10kg ~ 200kg)
Stainless Steel, 1mV/V, IP67
35

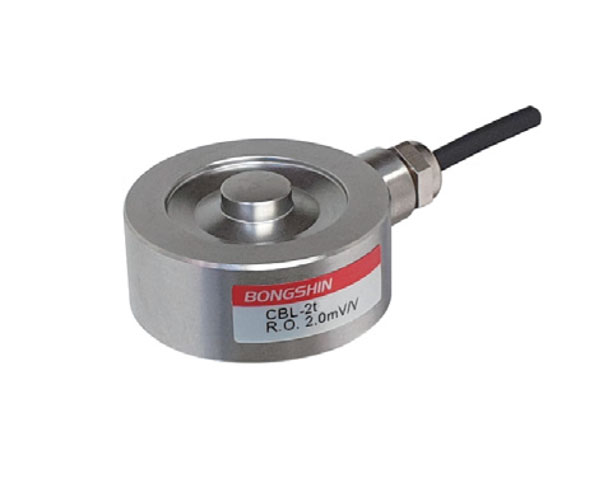

CBL
Compression
Miniature Load Cell (200kg ~ 3t)
Stainless steel 2mV/V, IP68
36

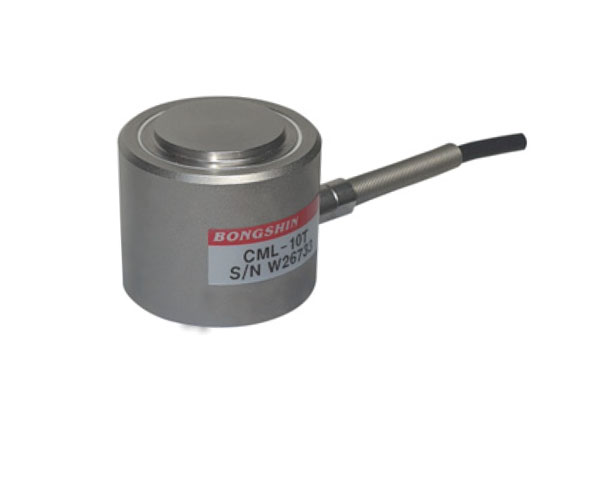

CML
Compression
Miniature Load Cell (5t ~ 15t)
Stainless steel 2mV/V, IP65
37

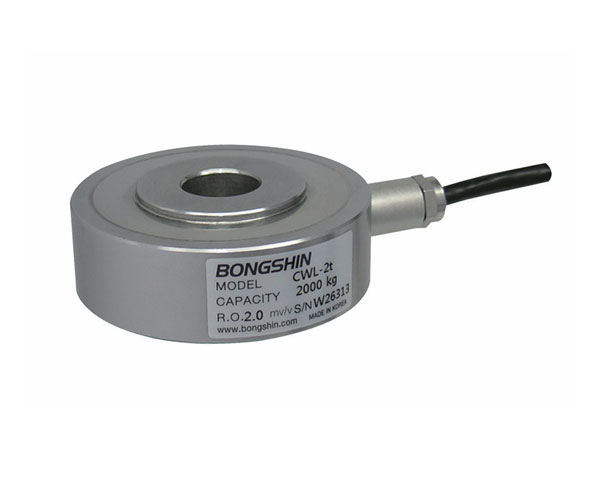

CWL
Center hole type Load Cell
(500kg ~ 5t)
Stainless steel
2mV/V, IP68
38

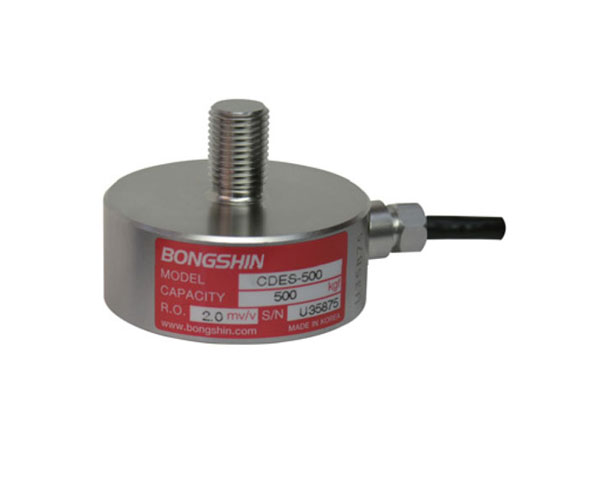

CDES
Compression & Tension
Low Profile Load Cell (50kg ~ 2t)
Stainless Steel & Welded cover, 2mV/V, IP68
39

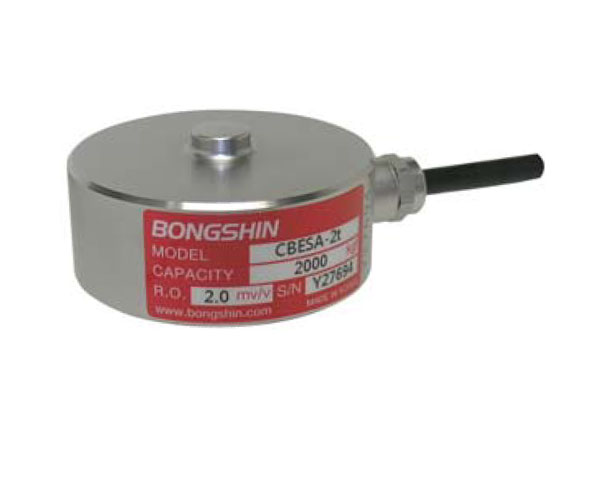

CBESA
Compression
Low Profile Load Cell (50kg ~ 20t )
2mV/V, IP68
40
DSCH / DSCHS
Compression & Tension
Low Profile Load Cell (1t ~ 100t)
Alloy Tool steel or Stainless Steel , 3mV/V, IP67 / IP68
41

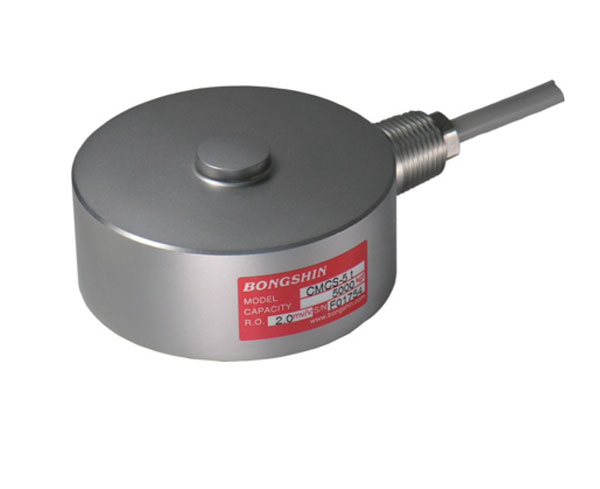

CMCS
Compression
Low Profile Load Cell
(500kg ~ 10t)
Stainless Steel & Welded Cover, 2mV/V, IP68
42

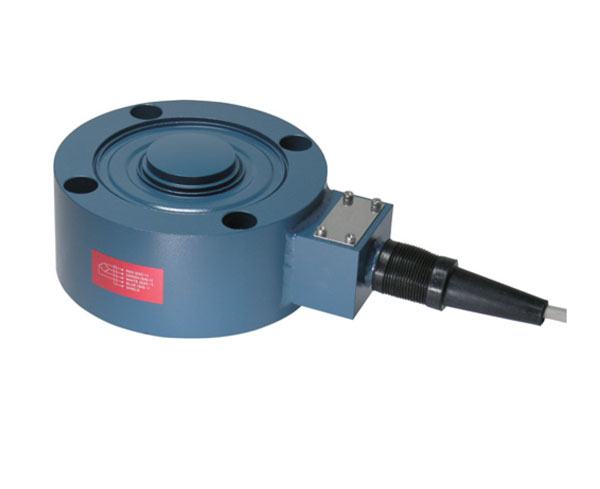

CSCK
Compression Load Cell (10t ~ 100t)
Alloy Tool Steel,
3mV/V, IP67
43
DSCK
Compression & Tension
Low Profile Load Cell (1t ~ 20t)
Alloy Tool Steel, 3mV/V, IP67
44

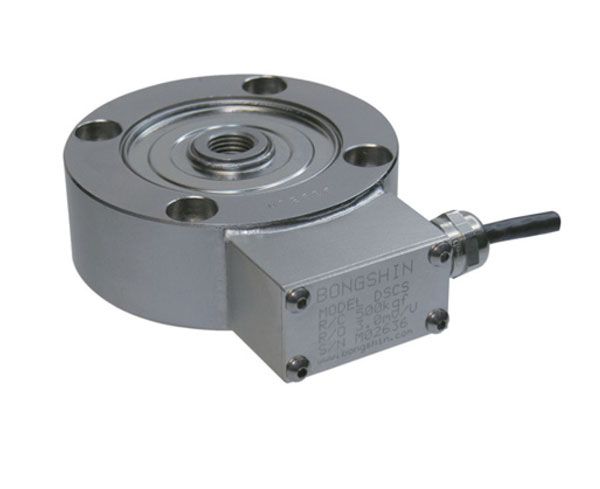

DSCS
Compression & Tension
Low Profile Load Cell (200kg ~ 1t)
Stainless Steel, 3mV/V, IP68
45
CSDH
Compression Load Cell (30t ~ 100t)
Alloy Tool Steel,
3mV/V, IP67
46

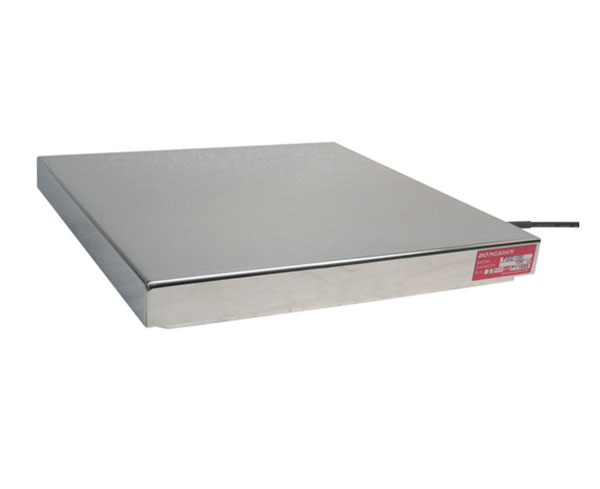

PSA
Slim Platform Scale (29mm)
(50kg ~ 300kg)
Stainless Steel Cover
47

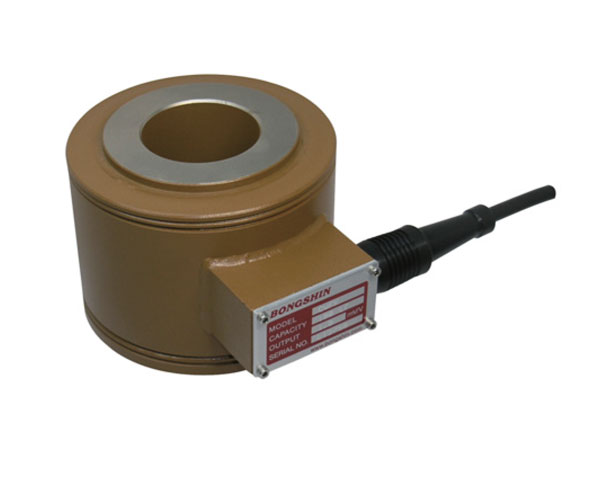

CWFK
Compression
Center Hole Type Load Cell (10t ~ 200t)
Alloy Tool Steel, 1mV/V, IP67
48
BTV

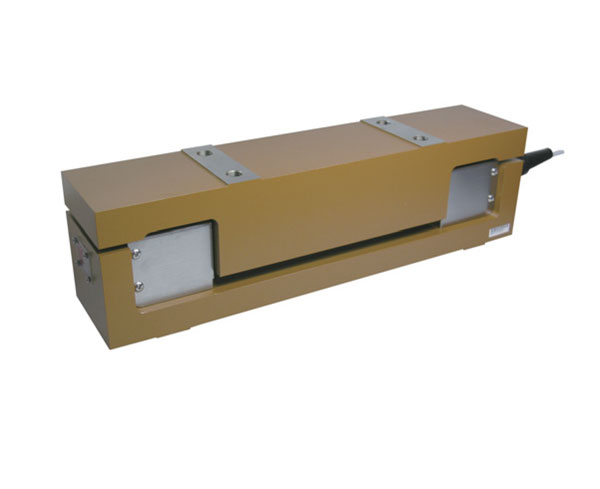

Pillow block type,
Verticall Measurement (50kN ~ 100kN)
Nickel Plated Alloy Steel 1mV/V, IP67
49
BTA
Pillow block type,
Horizontal Measurement (5kN ~ 50kN)
Nickel Plated Alloy Steel
1mV/V, IP67
50

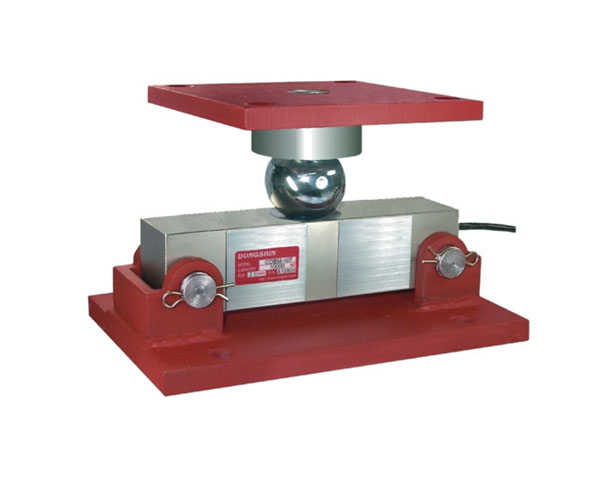

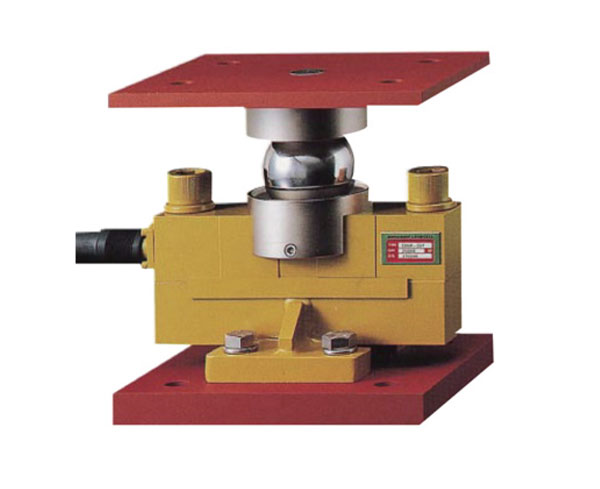

CDUP

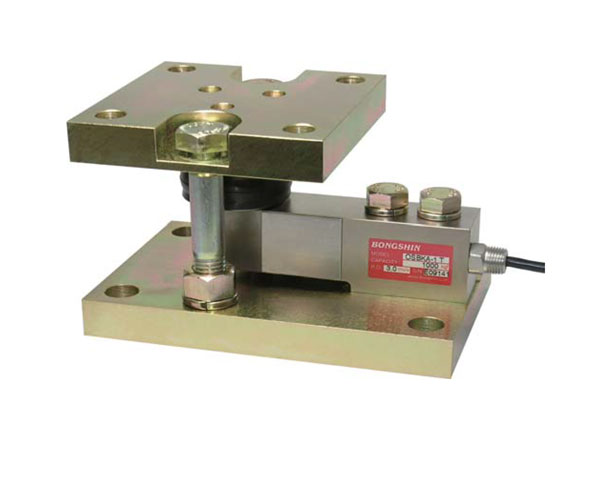

Weigh Module
Compression Load Cell (15t ~ 25t)
Alloy Tool Steel,
2mV/V, IP67
51

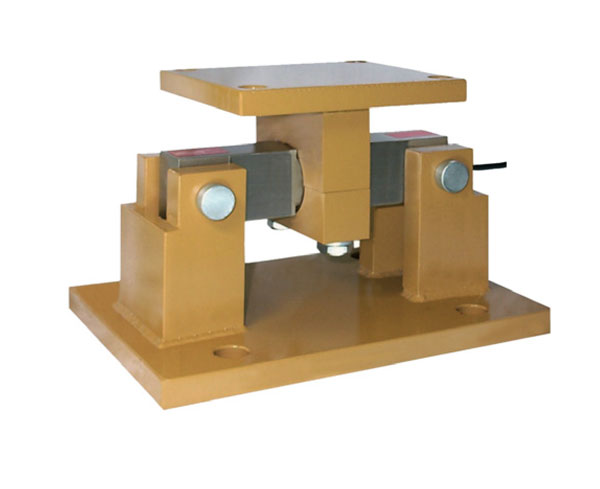

CDBM
Weigh Module
Compression Load Cell (5t ~ 15t)
Nickel Plated Alloy Steel
2mV/V, IP67
52
BMD
Weigh Module
Specially designed for hopper and tank
(5t ~ 15t)

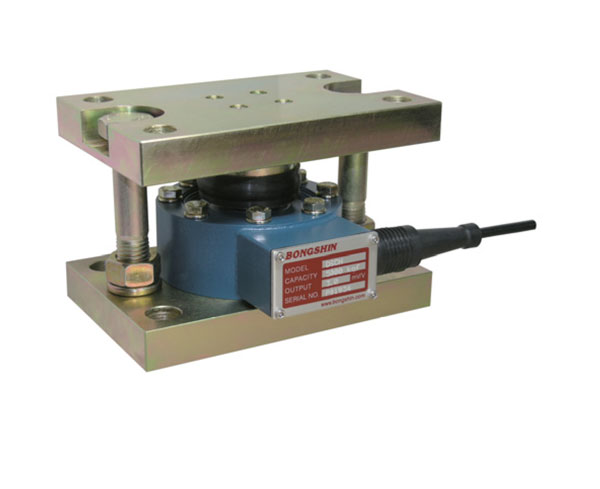

53
BMK
Weigh Module
Specially designed for hopper, bin and tank
(100kg ~ 5t)
54
BMH
Weigh Module
Specially designed for hopper and tank
(1t ~ 10t)
55

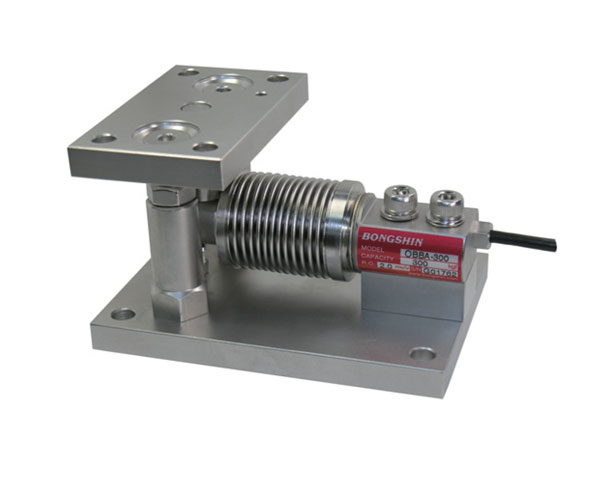

BMA
Weigh Module
Specially designed for hopper, bin and tank
(20kg ~ 300kg)
56

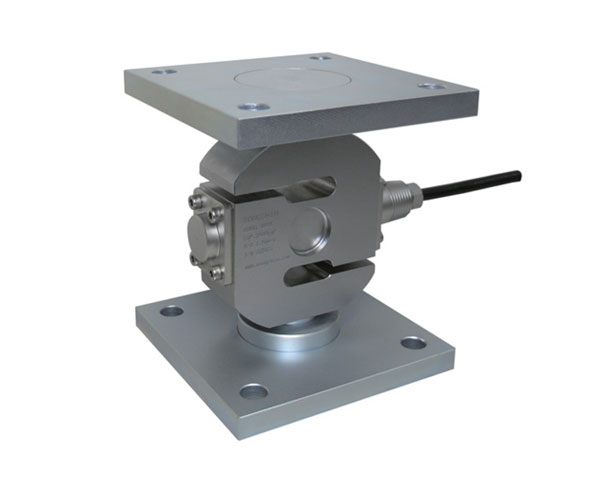

BMDX
Weigh Module
Specially designed for hopper, bin and tank
(1t ~ 3t )
57
BMLX
Weigh Module
Specially designed for hopper, bin and tank
(2t to 15t )
58

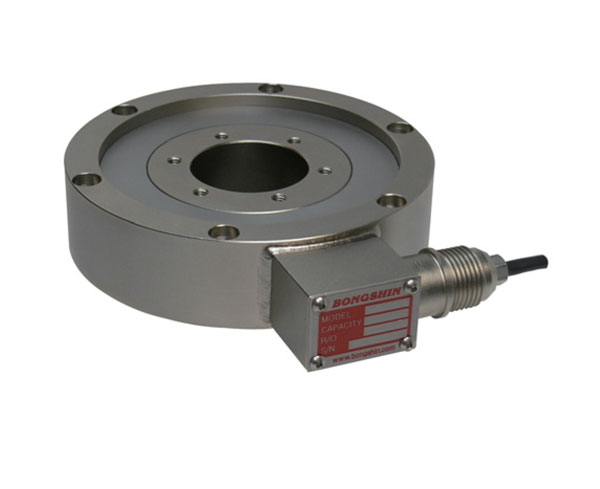

CS61
Center Hole Type
Low Profile Load Cell (1t ~ 3t)
Nickel Plated Alloy Steel
1.5mV/V, IP67
59

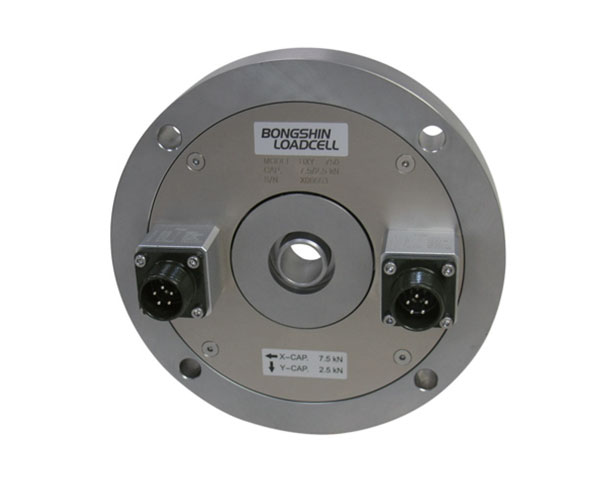

BXY
X-Y Force Sensor
(250kgf ~ 1tf)
Stainless Steel
2mV/V, IP54
60

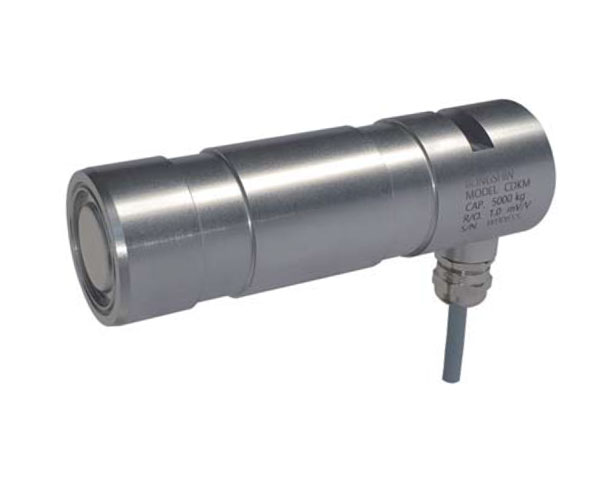

CDKM
Pin Type Load Cell (5t ~ 60t)
Stainless Steel
1.0mV/V, IP68
61

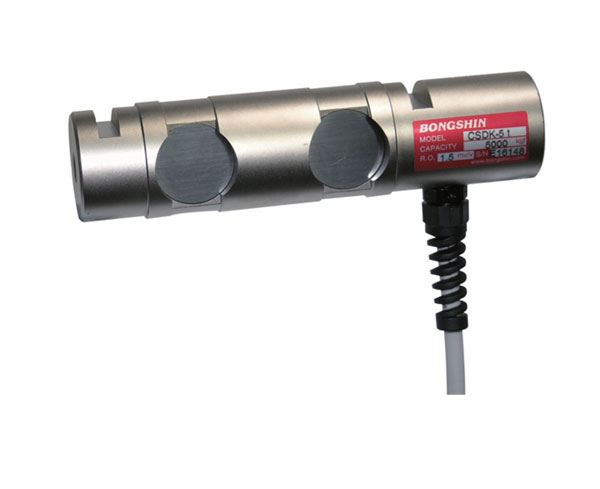

CSDKA
Pin Type Load Cell (2t ~ 50t)
Nickel Plated Alloy Steel
1.5mV/V, IP67
62

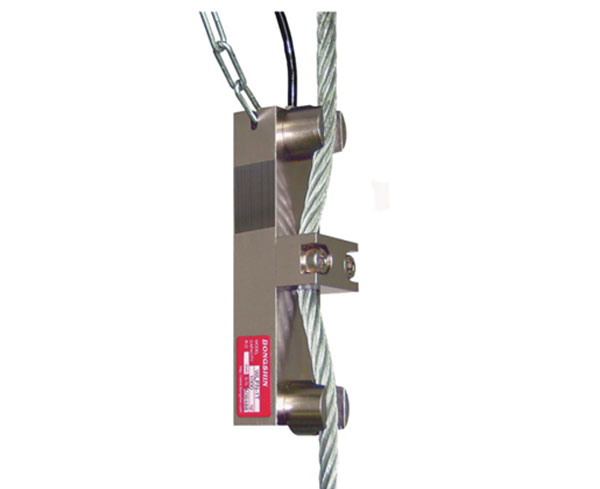

WLFN2
Measuring the tension of wireropes
(0.5tf ~ 10tf per Rope)
Nickel Plated Alloy Steel
1mV/V, IP64
63

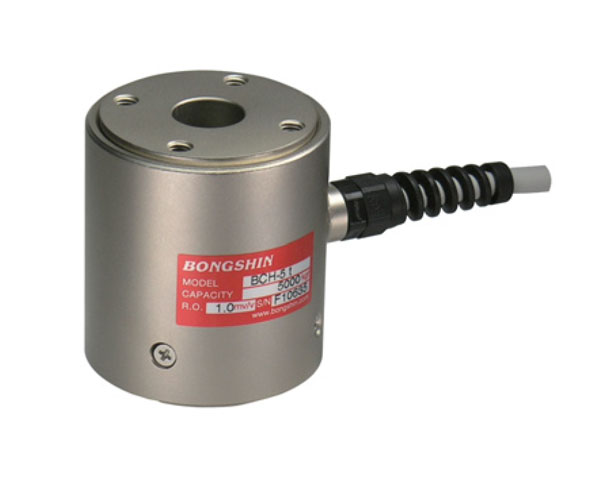

BCH
Compression Load Cell
(1t ~ 50t)
Nickel Plated Alloy Steel
1mV/V, IP64
64

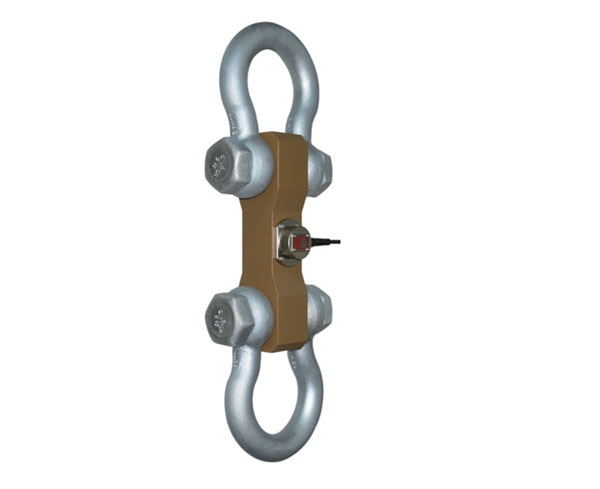

TLH
Tension Load Cell (10t ~ 50t)
Nickel Plated Alloy Steel
2mV/V, IP67
65

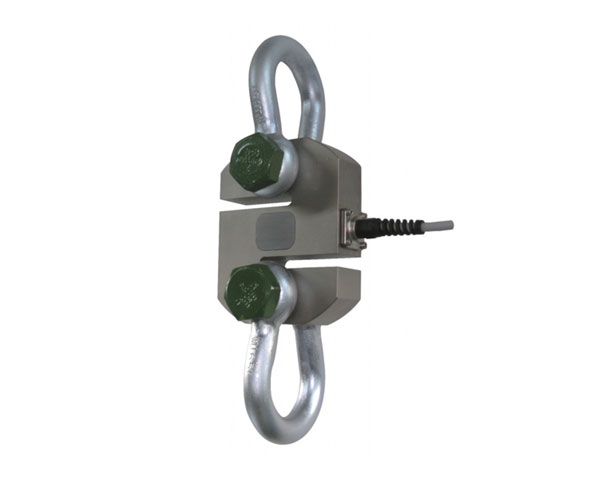

TLC
Tension Load Cell (500kg ~ 5t)
Nickel Plated Alloy Steel
2mV/V, IP67
66
Customized
Pin Type Load Cell
500kg ~ 200t
Alloy Steel or Stainless steel
67
Customized
Weighing Platform
50kg ~ 2000kg
Stainless Steel Cover
