디지털 토크센서
Lorenz사 제품 / 회전형 Non Contact Type & Slip Ring Type
취부 조건에 따른 여러 형태의 비회전형
제품소개
디지털 토크센서
▸ 회전형 토크센서(Non Contact Type) Lorenz社 제품
1

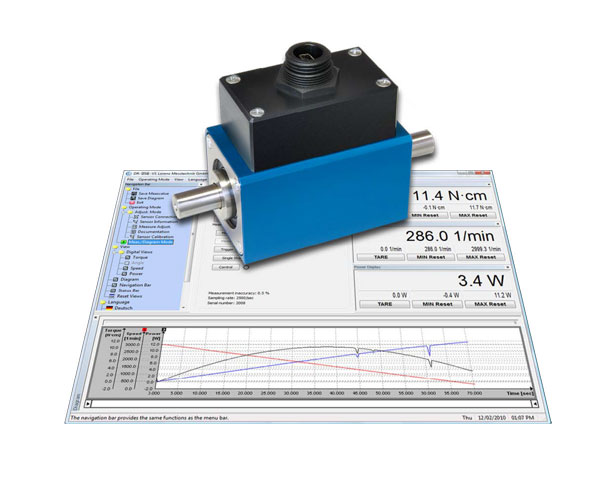

DR - 3000
0.1 N.m ~ 5,000 N.m
USB Torque Sensor, inclusive
Software
Speed up to 30,000 rpm.
2
DR - 2643
0.1 N.m ~ 5,000 N.m
±5V Output
Speed up to 30,000 rpm.
-
3
DR - 2112 / DR - 2412
0.1 N.m ~ 20,000 N.m
±5V / RS485 Output
Speed up to 15,000 rpm.
4
DR - 2477
0.2 N.m ~ 200 N.m
±5V Output
Speed up to 10,000 rpm.
5
DR - 2113 / DR - 2413
0.1 N.m ~ 5,000 N.m
±5V / RS485 Output
Speed up to 4,000 rpm.
Squire Socket Type
6

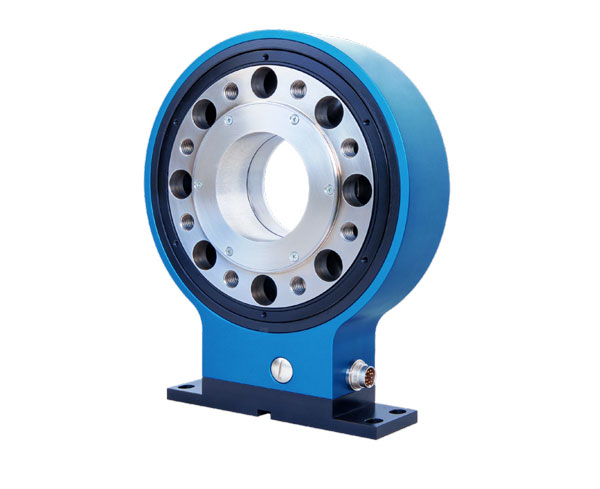

DR - 2800
50 N.m ~ 5,000 N.m
±5V Output
Speed up to 15,000 rpm.
Bearingless Flange Type
7
DR - 2212 ( 고용량 )
0.1 N.m ~ 20,000 N.m
±5V Output(Optional ±10V)
Speed up to 15,000 rpm.
High torsional stiffness
Very short axial length
▸ 회전형 토크센서(Slip Ring Type) Lorenz社 제품
8
DR - 2
1 N.m ~ 500 N.m
High Accuracy (0.1%)
Compact Size
-
9
DR - 20
1 N.m ~ 500 N.m
High Accuracy (0.1%)
Speed / Angle Measurement
Compact Size
10
DR - 1
1 N.m ~ 5,000 N.m
High Accuracy (0.1%)
Drive-Square Socket
Compact Size
11
DR - 12
1 N.m ~ 5,000 N.m
High Accuracy (0.1%)
Speed / Angle Measurement
Compact Size
12

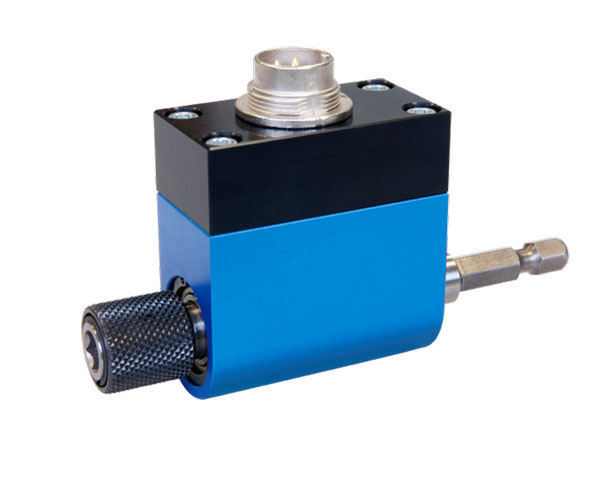

DR - 2291
1 N.m ~ 20 N.m
High Accuracy (0.1%)
Output Hexagon Socket
Compact Size
-
13

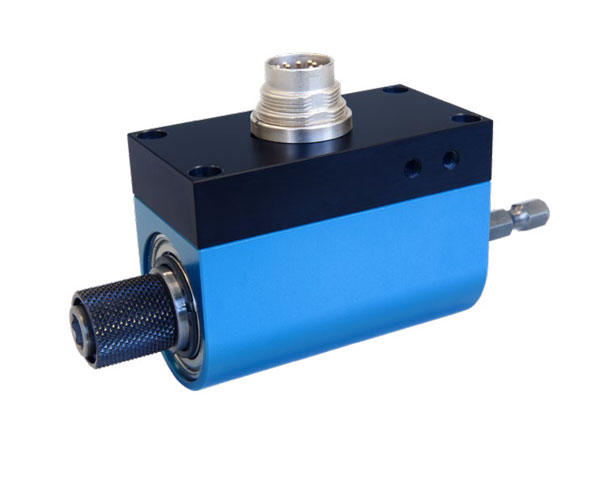

DR - 2335
1 N.m ~ 20 N.m
High Accuracy (0.1%)
Output Hexagon Socket
Speed / Angle Measurement
Compact Size
▸ 비회전형 토크센서(Non-Rotating Type) Lorenz社 제품
14
DH - 15
0.005 N.m ~ 20 N.m
Accuracy (0.2%)
For Very Small Range
Very short axial length
15
D - 2452 / D-2452-P
0.005 N.m ~ 20,000 N.m
High Accuracy (0.1%)
For Very Small Range
Very short axial length
16
DF - 30
10 N.m ~ 20,000 N.m
High Accuracy (0.1%)
Flange with Center Hole
Compact Size
17
D - 2268
50 N.m ~ 10,000 N.m
High Accuracy (0.1%)
Short Design
Flange Type
▸ Lorenz社 Products
18
Lorenz社 Catalog
Torque Sensors ( Digital, Analog )
Multi - Component Sensors
